Laser cutting of rubber

"Goed advies, nette levering - Uitgebreid advies gekregen bij mijn bestelling, alles is super netjes afgeleverd."

How it works

You can design your own laser cutting online from a single piece, even as an individual or student. For this you need a drawing required. If your product becomes a success, you can also easily order from us high quality serial work at competitive prices.

Make your production easy, have it laser cut!

Laser cutting of rubber: Fast, precise and affordable

Types rubber that you can have laser cut

Filters

Sort by:

3 products

Siliconenrubber - 2.0 mm - rood - MS0259 - SnijlabSiliconenrubber - undefined - Snijlab
Silicone rubber Offer priceFrom €15,69

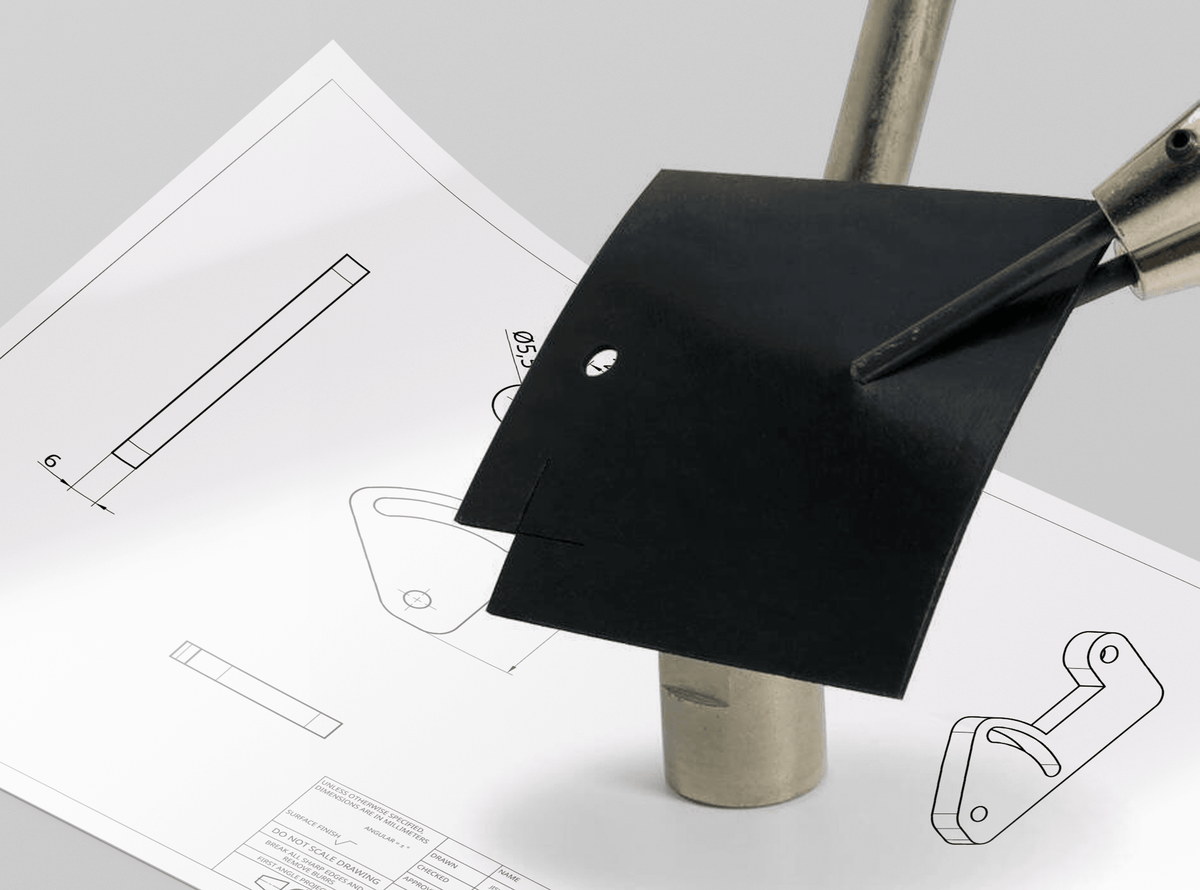

CR rubber - 1.0 mm - zwart - MS0262 - SnijlabCR rubber - undefined - Snijlab
CR rubber Offer price€14,91
New!
Stamp rubberStamp rubber
Stamp rubber Offer price€18,11

Samples of rubber compare?

Order one material sample chain and compare all types rubber in your own hand. This way you make a well-informed decision about your design.

Samples provide a representative picture of the quality Snijlab delivers.

To the samples

Info about rubber

Create a drawing and receive rubber according to your design. Fast, economical and precise. Create custom seals, gaskets and insulators in no time. A laser cut in rubber is about 0.2mm wide and the laser exerts no force while cutting so you can make the smallest details.

Rubbers are flexible, strong and waterproof. Depending on the type, they can withstand various chemicals.

Silicone rubber is available in red and natural. Silicone has a wide temperature range from as low as -60° C to +220°C. It has a hardness of about Shore 60, which is comparable to rubber casters. Silicone is dishwasher safe.

CR rubber or neoprene sheet rubber Is a strong black rubber. This is an all-purpose rubber. It is chemically resistant to many substances, including (sea) water, dilute acids, solvents, mineral oils and greases. Neoprene's weather and ozone resistance are good.

Stamp rubber is specially designed for making stamps. Laser engraving removes part of the surface. So you get a one-piece stamp that you can make as many details in as you want.

Neoprene cellular rubber is different from CR sheet rubber because it is foamed. This makes it softer and more flexible. Neoprene cellular rubber is suitable for larger seals where a larger space needs to be sealed and pressure is lower.

Not rubber, but interesting for when you want to make seals and gaskets, is gasket paper

Please note that the edges of laser-cut rubber can give off after laser cutting, depending on the type. You should therefore wash the rubber parts well with soap and water after receiving them.

If you want to have rubber laser cut, you will need a drawing of the shape you want to cut. This should be a digital 2D line drawing in AI, DWG, DXF or vector PDF format. Read here what the drawing rules are.

If you have a laser cut drawing, you can upload it on account.snijlab.nl and choose a material. You will immediately see the price and can make a delivery time choose. If you agree you can order and pay online and get your laser cut rubber delivered to your home on the agreed date.

Not sure or have any questions? Our customer service is happy to help.
