Laser cutting from extruded acrylic
After uploading your design, you will receive an instant, no-obligation price. If you want, you can then order securely online.
In print runs as low as €0.05 per part!
Description
Properties

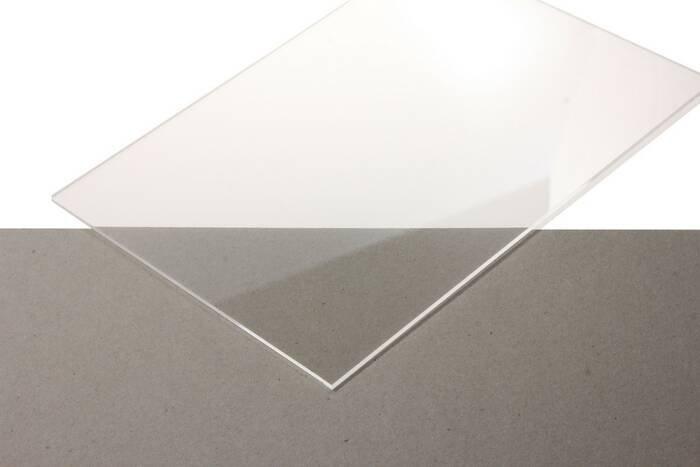

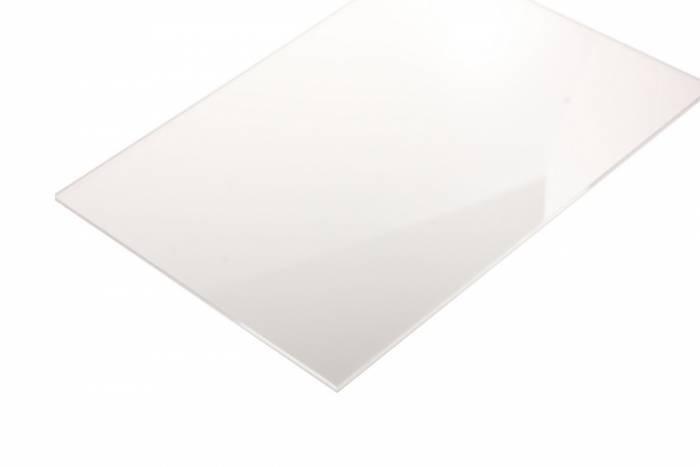

Crystal clear plastic that is UV resistant. Laser-cut edges are clear and neat. Extruded acrylic is also called XT (from extruded). It is made by extruding sheets. This produces a more stable thickness than casting which is done with other types of acrylic. Engravings are not easily visible on extruded acrylic. Piece numbering is possible with line engravings, but for logos and other visuals it is better to use our regular acrylic.
Applications

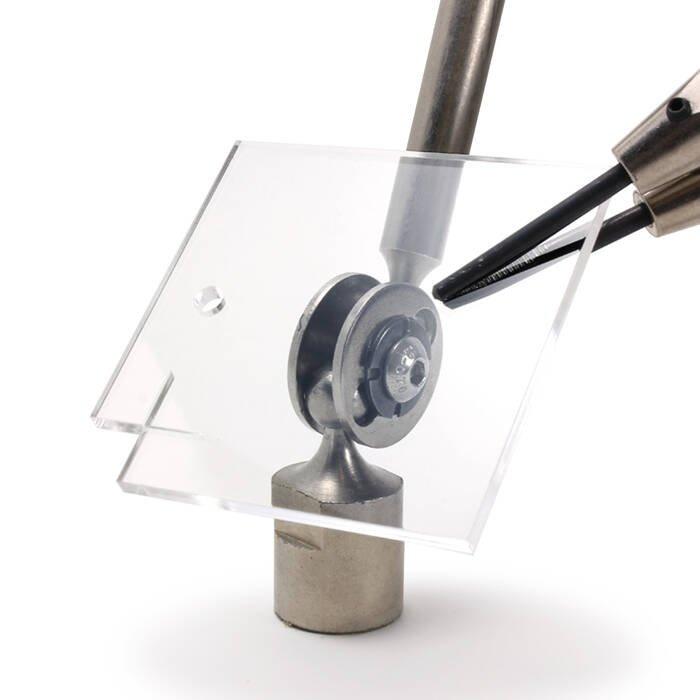

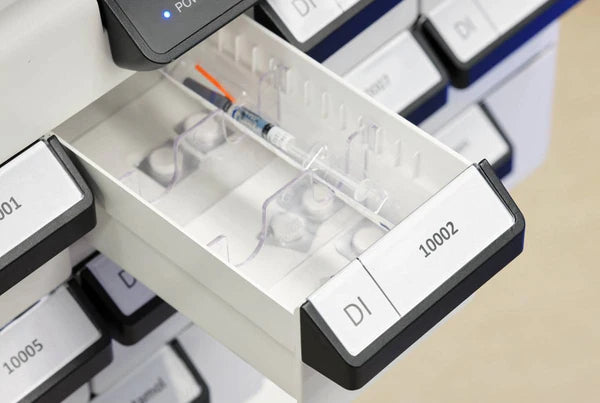

Extruded acrylic is mainly used in the medical industry, consumer products and machine building. It has a professional appearance and does not require finishing. Some examples of applications: - interlocking promotional objects - drawer dividers - models - front panels of appliances
| Material information | |
|---|---|
Available colors |
colorless
|
Available thicknesses |
3.0 mm
|
| Technical specs | |
Density (Kg/m³) The specific weight per volume in kg / m³
|
|
Heat Deflection Temperature (°C) Heat Deflection Temperature indicates the temperature up to which a material remains rigid under load.
|
|
E-modulus (MPa) The modulus of elasticity or stiffness of the material. This indicates how much the material deforms under a given stress.
|
|
Moisture absorption(%) The degree to which a material absorbs moisture from the environment. A material that has absorbed moisture expands.
|
|
Tensile strength (MPa) The tensile strength is the maximum stress the material reaches just before it fails (permanently deformed). In practice, a material is used well below this limit.
|
|
Elongation to fracture (%) |
|
Impact strength (Charpy) Impact strength indicates how well the material can absorb shocks and blows. In the test, the material is held at two ends and struck in the middle with a special impact hammer.
|
|
Hardness (Shore °D) Hardness of the surface measured on a scale of Shore. For comparison, at shore D, a car tire is 15, a skateboard wheel is 50 and a construction helmet is 80.
|
|
Coefficient of friction The coefficient of friction indicates how much resistance a material provides to friction. Simply put; the lower this number the better the material glides.
|
|
Heat capacity (Kj/Kg°C) Indicates how much heat energy is required for the material to heat up. Or viewed another way, how much heat can the material store?
|
|
Breakdown voltage (kV/mm) The breakdown voltage is important when the material is used as an insulator and indicates the voltage at which the material ceases to insulate and begins to conduct.
|
|
Coefficient of thermal conductivity (W/mK) |
|
Coefficient of thermal expansion (mm/m°C) |
|
Maximum operating temp. short-term (°C) |
|
| Chosen variant | |
Material number |
MS1011
|
Thickness |
3.0 mm
|
Color |
colorless
|
Panel weight (kg/m²) |
0.08 kg
|
See Extruded acrylic In real life, order a sample
To the samples
The advantages of laser cutting Extruded acrylic
By Extruded acryliclaser cutting, you can create complex designs with little effort and high quality. And that can be at any stage of production; research, prototyping, (on-demand) production or volume production. Laser cutting offers a range of advantages for machining Extruded acrylic including precision, speed, low cost and no minimum order.
How does laser cutting work?
Laser cutting and engraving order online. Create an account and upload your drawing. Prices are calculated instantly, and quotes you download yourself.
We are here for you if you have any questions.
Contact us via chat, phone or mail.
Layout drawing
- DXF, DWG, AI, PDF files
- Blue line = cutting
- Red line = line engraving
- Magenta line = plane engraving
Choose a delivery time
- Speed (ordered before 12:00 noon, delivered tomorrow)
- Fast (2 business days
- Standard (4 business days)
- Expensive (13 business days)
Secure online payment
How do you order laser cutting?
Upload your drawing, choose a material and delivery time and we will make it for you.
Try it now, uploading is free!
What does Extruded acrylic laser cutting cost?
The price for laser cutting your design is automatically calculated in the shopping cart. Upload your drawing, choose a material and delivery time, and see the price instantly.
1 medium design ≈ €24.99*
1 full sheet ≈ €65.43*
1000 small parts ≈ €0.05/pc.*
*These are indicative prices incl. btw to give you an idea. Once you upload a design upload you will see the exact price.
Quality does not come naturally
Experts at the machines
Want to see materials in real life?
Order one material sample chain. Samples provide a representative picture of the quality Snijlab delivers. This also allows you to compare materials so that you can make a good design decision.
To the sample chainsStill a different material?
