Laser cutting with Solidworks

Lasersnijden met Solidworks - Snijlab

Cutting out a part from Solidworks is very easy.

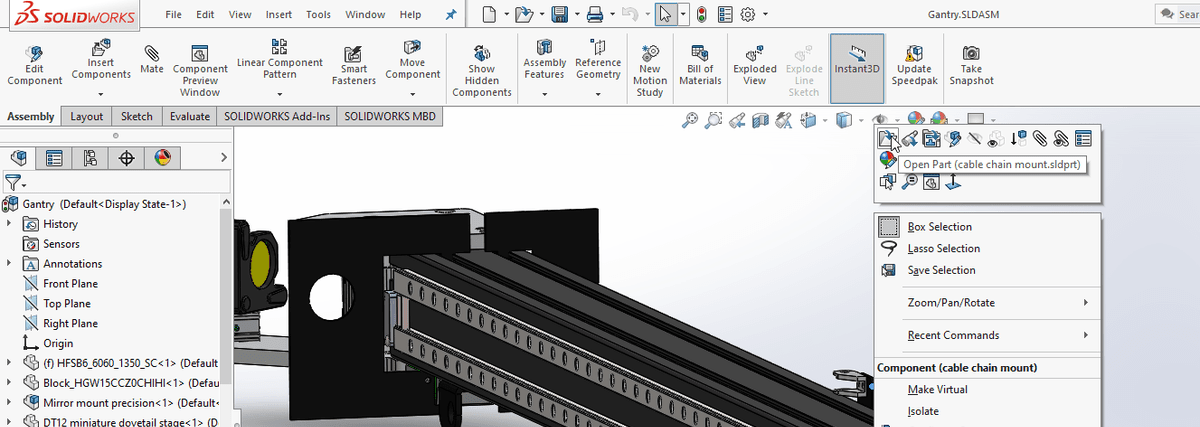

We start in an assembly. Right click on the desired part and choose ' Open Part '

Laser cutting with Solidworks

You are now in the Part editor:

Laser cutting with Solidworks

Export to DXF

Right click on the part plane and choose ' Export to DXF/DWG '

Laser cutting with Solidworks

Choose a folder and file name

Laser cutting with Solidworks

Make sure the correct face is selected under 'Entities To Export' and click the green check mark

Laser cutting with Solidworks

Check that all desired lines are in the preview and click ' Save '

You can immediately upload the DXF file you just exported to order.
